Dirt LockR
by Jon Clear Designs
Bespoke hardshell on-bike tools and spares storage● Custom fit, for optimised volume and streamlined design
● Secure attachment, using bottle mount bosses
● Easy access, via large side door
● Anti-rattle, all items rubber clipped and/or cushionedDelivered* prices to fit Canyon Neuron CF8 Medium 2023:
Dirt LockR only £50
Dirt LockR all-in kit £150
Currently built-to-order so please allow 7-14 days for delivery. *Note delivery outside the UK at additional cost.For other bikes / contents / graphics / colours please enquire about a custom design!For all enquiries just email me via the link (envelope) below ↓
FAQs
Dirt LockR close up (click on any pic to expand)

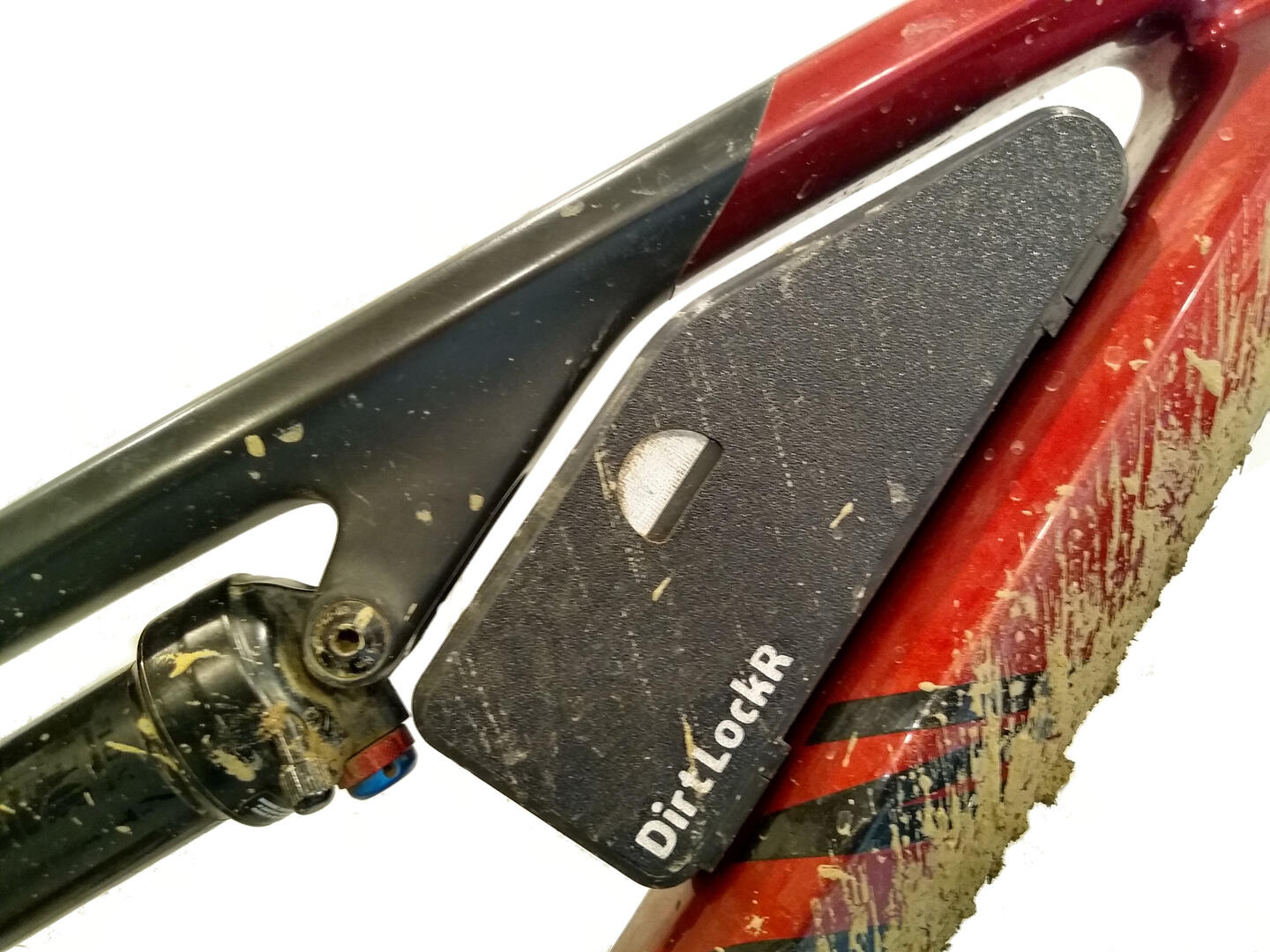

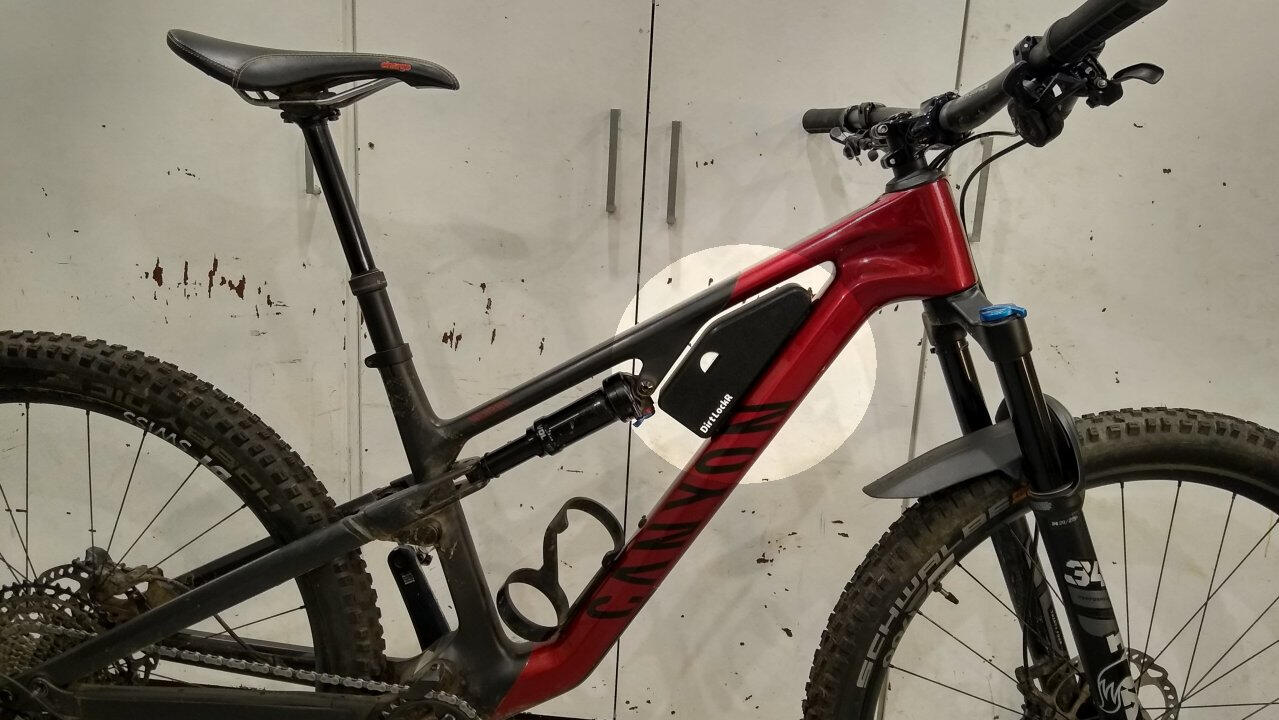

Dirt LockR installed on my Canyon Neuron CF8 2023 medium

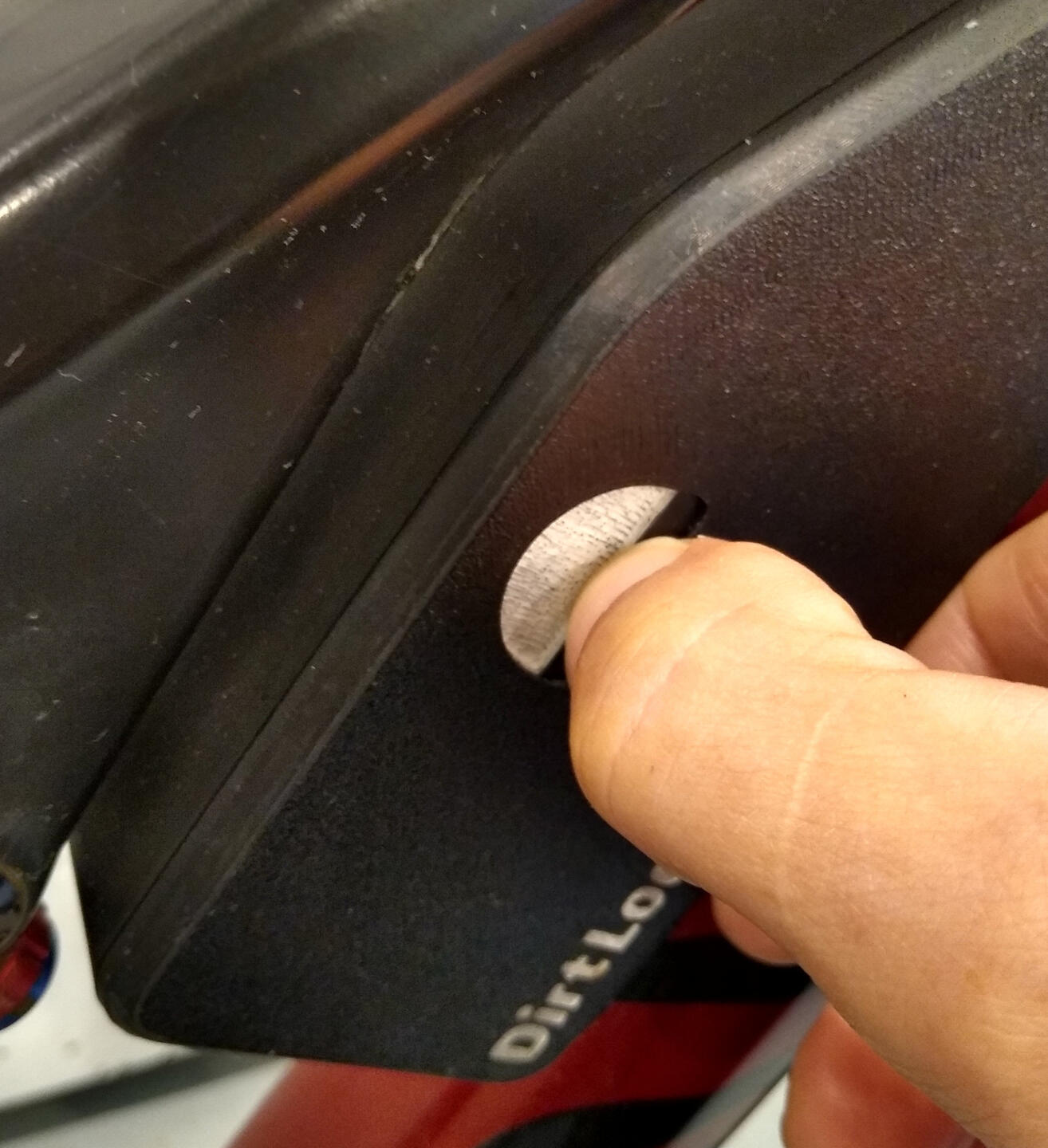

Dirt LockR thumbnail catch

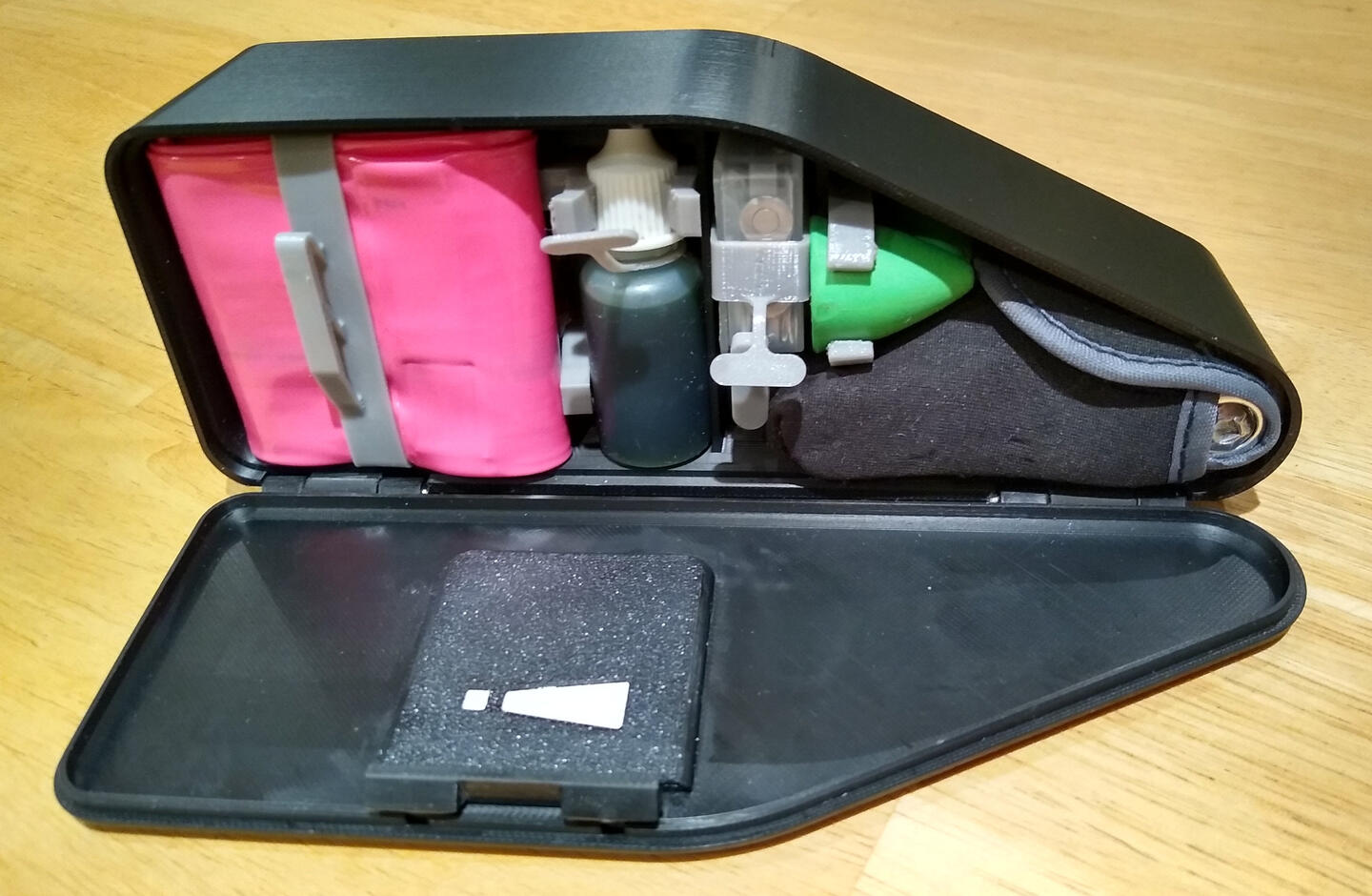

Primary access to most items

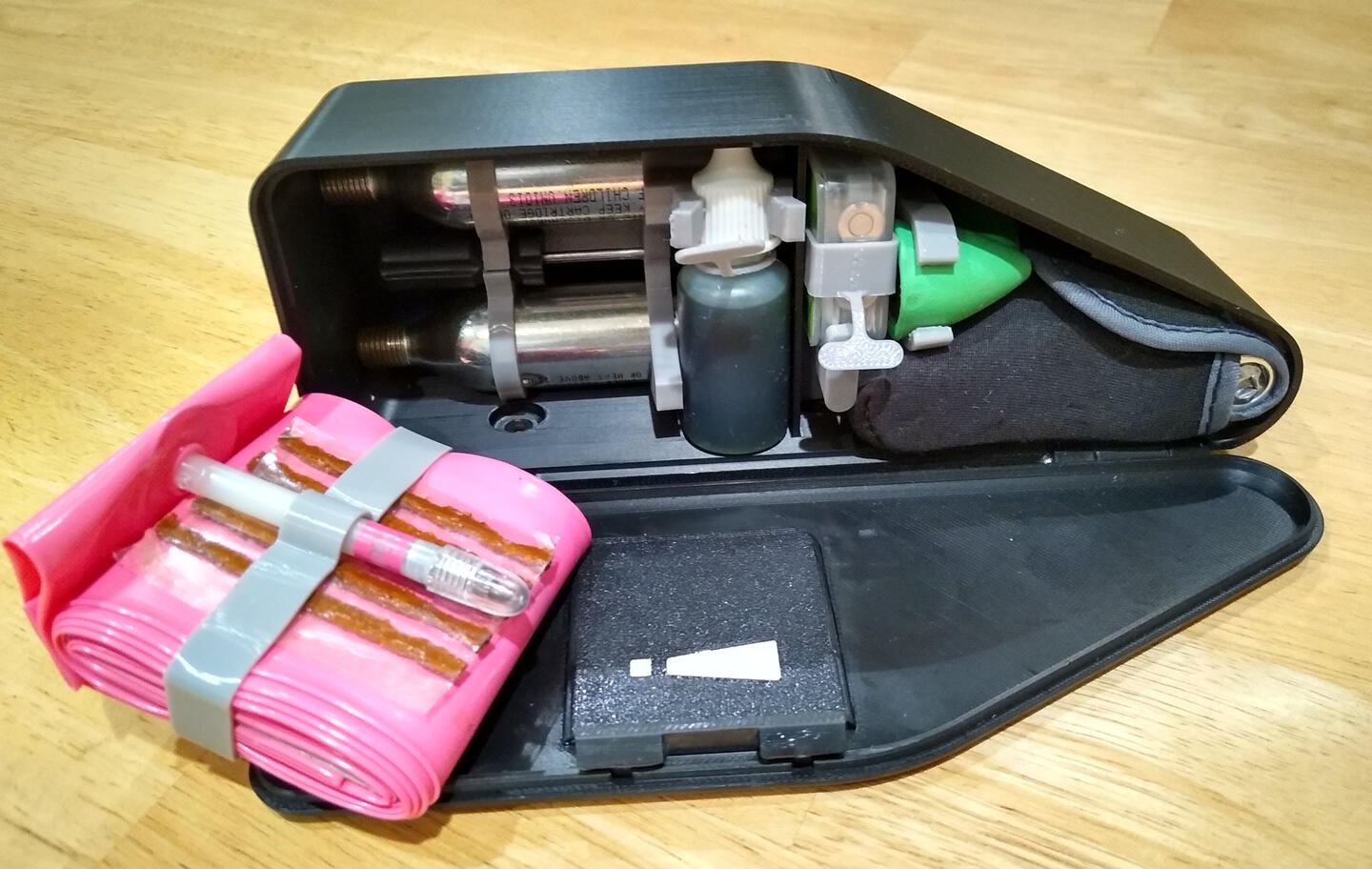

Secondary access to CO2 cylinders and worm tool

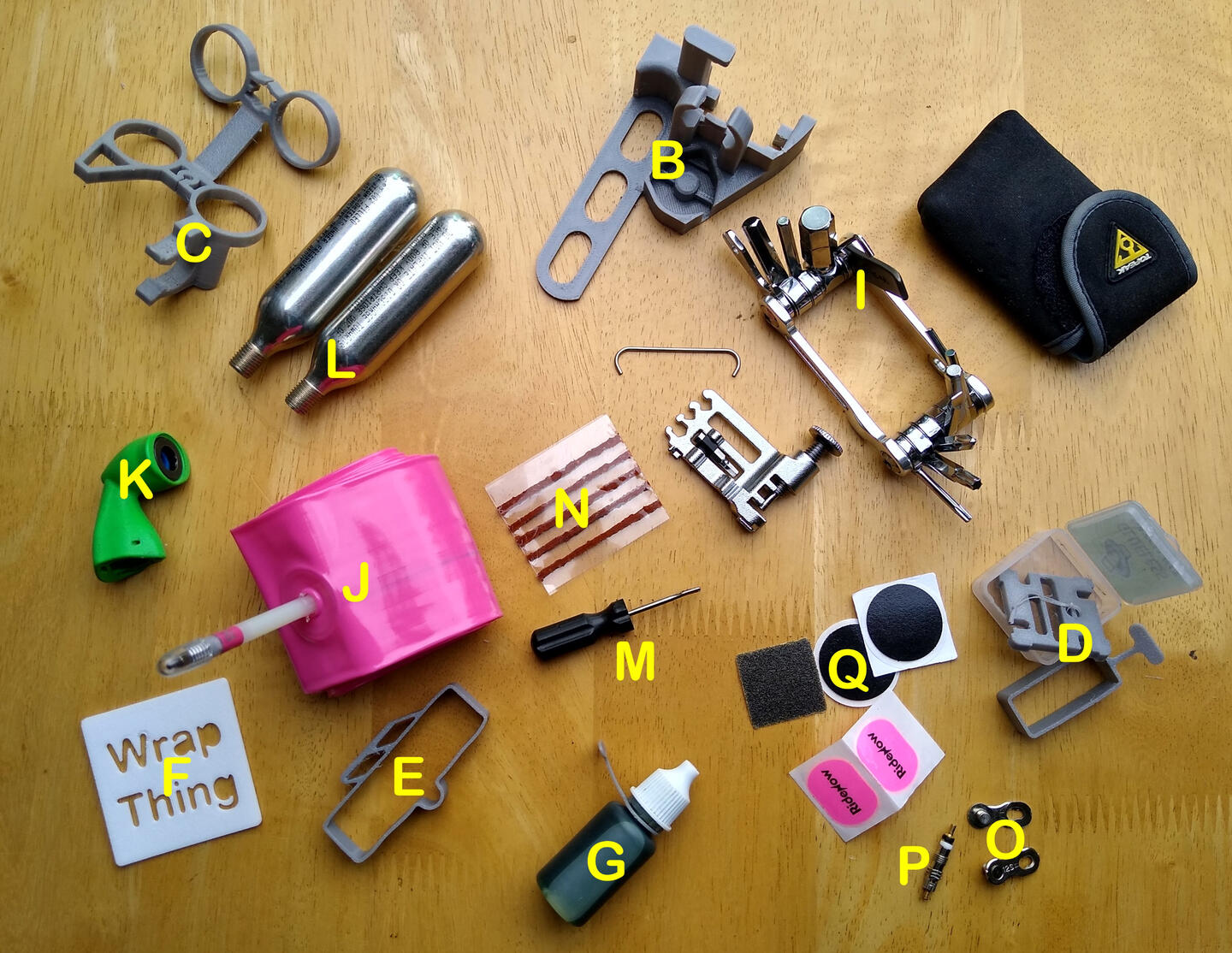

Everything out! (see further below for refs to full kit list)

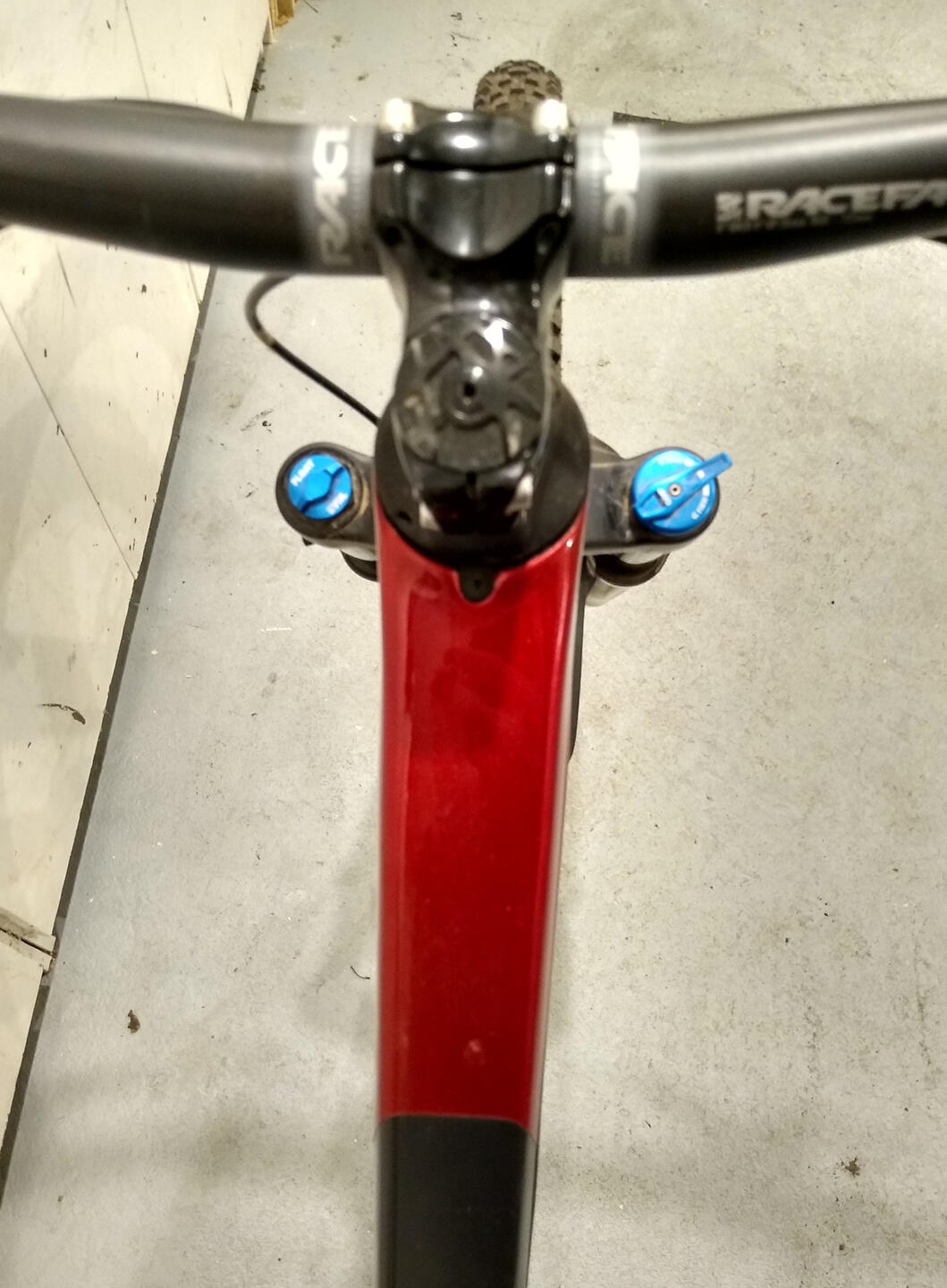

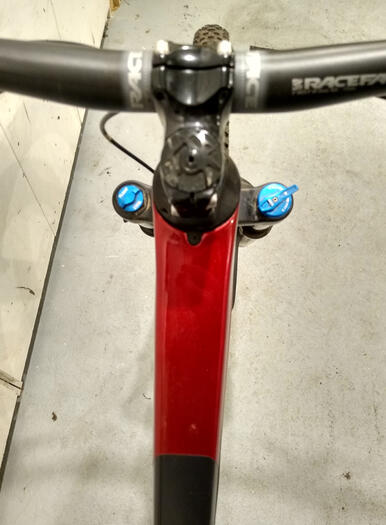

Fits within frame from above

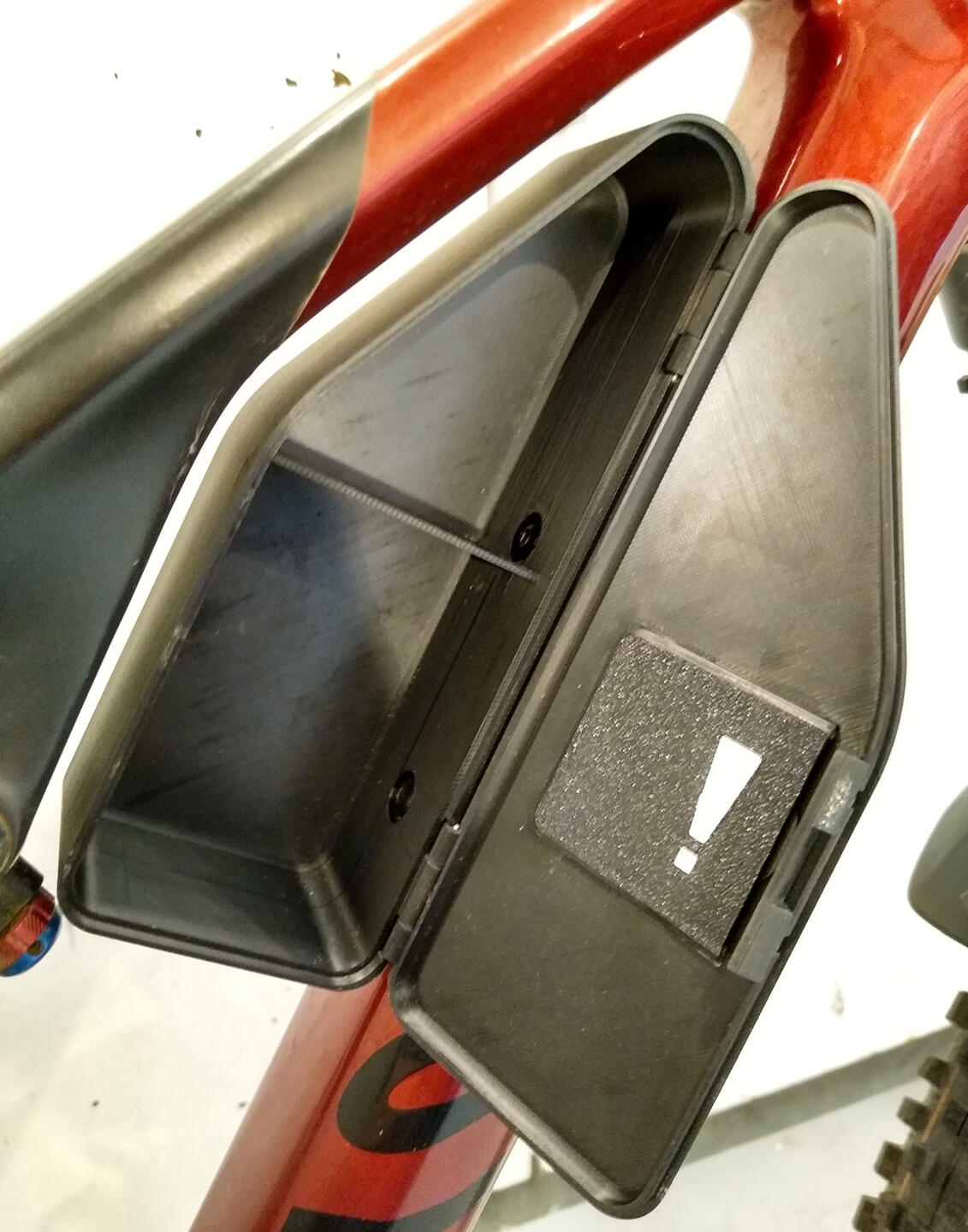

Dirt LockR only (ref A, for details see further below)
Jump onto YouTube for my show-and-tell video:
Dirt LockR Only Specification:
Shell - Black ABS plastic 3D print*
Hardware - Stainless steel hinges, door catch spring, and mounting bolts
Graphics - Painted in, white
Weight - 100g approx (no contents)
Volume - 0.45L*NOTE on 3D printing - even with an optimised process small visual defects can occur, function is not affected.
Dirt LockR All-In Kit List:
| Ref_ | Part____________________________ | Details____________________________________________ | Weight(g)_________ |
|---|---|---|---|
| A | Dirt LockR | See specification section above | 100 |
| B | DirtLockR Front Liner | Grey TPU 'rubber' 3D Print* | 14 |
| C | DirtLockR CO2 Cage | Grey TPU 'rubber' 3D Print* | 6 |
| D | DirtLockR Patches Box Liner/Tag | Grey TPU 'rubber' 3D Print* | 3 |
| E | DirtLockR Tube Band | Grey TPU 'rubber' 3D Print* | 2 |
| F | DirtLockR Tube Wrap Thing | White PLA plastic 3D Print* | 3 |
| G | DirtLockR Oil Bottle with Pull Tag | 10ml wet lube | 13 |
| H | 2 x Mounting Bolts | M5x10 Stainless Pan Head | 6 |
| I | Multitool | Topeak Mini 20 Pro | 151 |
| J | Inner Tube | RideNow TPU 29x1.9-2.5" | 56 |
| K | CO2 Inflator | Genuine Innovations Microflate Nano | 23 |
| L | 2 x CO2 Cylinders | 16g capacity each | 114 |
| M | Worm Tool | Genuine Innovations | 5 |
| N | 5 x Worms | Genuine Innovations | 1 |
| O | Chain link | Shimano 12spd quick link | 2 |
| P | Valve core | Presta | 4 |
| Q | Glueless patches | - | 3 |
| - | - | Total Weight | ~500g |
Bonus item! ...actually it's nice that someone has read this far ;-)

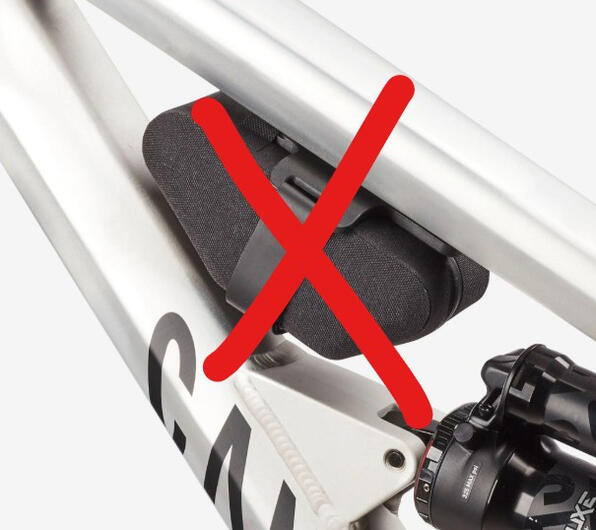

So...I did start out with the Canyon solution - the Long Bracket Frame Bag shown above. I don't have a photo of it on my bike, as my bag went AWOL due to a major flaw with that design!The bag is POORLY ATTACHED to the bracket by a not-very-grippy non-stretch strap. This means that even after cinching the strap down tightly, any settling of the bag contents due to trail vibration and the strap becomes loose. The bag can then ping off into the undergrowth unnoticed, as other than the strap it's only loosely hooked at one end onto the bracket.This happened twice for me, the first time I was lucky enough to notice quickly and went back to find it. I then stuck some inner tube to the bracket to try and improve the bag grip. No improvement though, and the second time there was no hope! Someone riding on the UK Mendip hills may find it one day, and be very happy.Other that this main flaw the bag is also TINY (volume is unpublished by Canyon, but approx 0.32L) so it's difficult-to-impossible to pack everything you need, even with minimalist kit.These issues drove me to design and make a better solution :-)
